Orwak Multi

One machine - many types of waste. ORWAK MULTI is a range of top-loaded multi-chamber balers designed to facilitate sorting and compacting different types of material at source.

EASILY EXTENDABLE TO AN INHOUSE RECYCLING POINT

These balers feature duo chambers as standard but the installation can easily be extended with additional chambers to grow in pace with your business and the multi-chamber solution can even form a mini-recycling station.

  • Compact in one chamber, while you fill up the next!
  • 5070 & 5070-HDC: bale removal by trolley
  • 5070-HDC features cross-binding

WHY ORWAK MULTI?

  • Sorting and compaction of several waste types at source
  • Top-loading of the material in open chambers
  • Compact waste in one chamber, fill up the next with material at the same time!
  • Total freedom to increase capacity by adding additional chambers
  • Heavy-duty cross-binding version for challenging waste types such as food and paint cans, jugs and even light wood packaging

ORWAK CONNECT – A SMART COMMUNICATION OPTION

Orwak Connect is a modem-based communication service enabling the baler to send a message for full bale or if the machine requires maintenance. Furthermore, the service offers great supervising opportunities! In the Orwak Connect web portal it is easy to monitor the fleet of balers and to gather bale statistics for a specific period of time. Orwak Connect is available for MULTI 5070-HDC and 9020S.

Read more about Orwak Connect

FEATURES IN DETAIL

  • 9020S: generous loading apertures and semi-automatic bale ejection
  • Safety feature: two hand operation of the press unit
  • Safety brake when sliding the press unit to the next chamber

PRESS FORCE: 3-20 ton BALE WEIGHT: (cardboard) up to 50 – 200 kg

Orwak Multi 5070

The 5070 model offers effective multi-chamber compaction in little space! A practical bale trolley is always included.

Press force: 3 ton

Bale weight cardboard/plastic: up to 50 kg/80 kg

  • Press force: 3 ton
  • Bale weight cardboard/plastic: up to 50 kg/80 kg
Product sheet

Orwak Multi 5070 Combi

The 5070 Combi model allows you to combine baling and in-bin compaction in the same machine.

The bin chamber is designed for standard four-wheeled bins up to 660 l. The standard version comes with one baling chamber and one bin chamber but additional chambers can be added to the system. A practical bale trolley is always included.

Press force: 3 ton

Bale weight cardboard/plastic: up to 50 kg/80 kg

  • Press force: 3 ton
  • Bale weight cardboard/plastic: up to 50 kg/80 kg
Product sheet

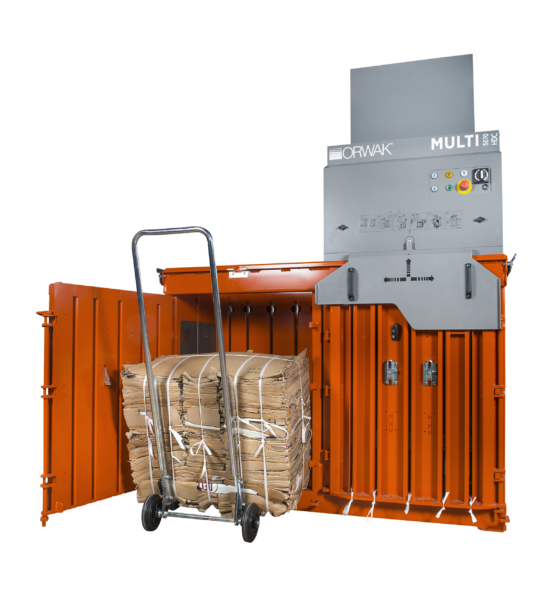

Orwak Multi 5070 HDC

This heavy-duty version of the standard 5070 is robust and versatile. It is prepared for cross binding and handles tough types of material

like PET bottles, plastic jugs, food and paint cans.

A smart option to 5070-HDC is the communication service Orwak Connect, which provides you with status updates and access to valuable bale statistics for your baler.

Press force: 10 ton

Bale weight cardboard/plastic: up to 80 kg/100 kg

  • Press force: 10 ton
  • Bale weight cardboard/plastic: up to 80 kg/100 kg
Product sheet

Orwak Multi 9020S

The 9020S model is the high capacity version in the Multi product family and the chambers allow for large volumes of material.

It can easily be extended with additional chambers to form a mini-recycling station.

The classic model is now presented in a modern design and upgraded with a new standard feature, a safety brake, that contributes to an even safer working environment! A smart option to 9020S is the communication service Orwak Connect, which provides you with status updates and access to valuable bale statistics for your baler.

Watch the product movie of 9020S on YouTube!

Press force: 20 ton

Bale weight cardboard/plastic: up to 200 kg/300 kg

  • Press force: 20 ton
  • Bale weight cardboard/plastic: up to 200 kg/300 kg
Animation
Product sheet
